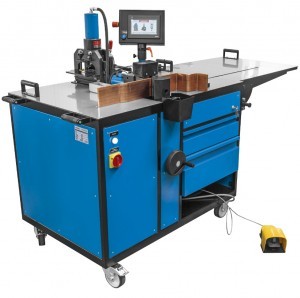

Station for precise cutting, bending, hole punching, inserting nuts, offsetting Al and Cu busbars:
• maximum busbar dimensions 12×125 mm
• bending angle range 0° ÷ 90°
Special features:
• equipped with LED touch screen programmed in: Polish, Russian, English, German
and Czech (other languages on request)
• equipped with electronic, programmable bending angle sensor (setting precision 1°)
• equipped with measuring rulers enabling precise positioning of 0,1mm
• precise height adjustment of hole punching head (0,2mm precision)
• burr-free round and oval holes punching
• burr-free busbars cutting
• built-in reliable hydraulic drive
• automatic identification of inserted dies
• bending angle correction complying busbar flexibility
• electronic lenght measurement of cut busbar (up to 6m)
• electronic lenght measurement of bent and punched busbar (up to 0,5m or 1,2m)
• busbar offsetting repeatability
• additional worktop
• tilt, rotatable touch screen
• equipped with control socket
• equipped with port for ERKO hydraulic heads (hose with PM 630 bar quick coupler)
Total dimensions: (LxWxH): 1400x930x1420 mm;
Weight incl. standard equipment: 355 kg;
Pressure: 630 bar; Power: 3 x 230V/400V; 1,4 kW
