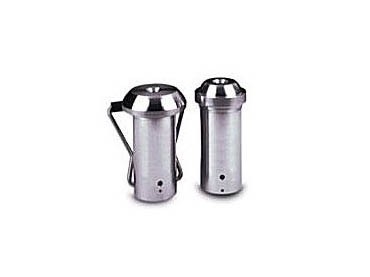

The PTX 661 hammer union pressure transmitter has been designed for use in extremely harsh environments in both on-shore and off-shore oil drilling operations where high shock and vibration is likely to be encountered. It differs from other hammer union pressure transmitters in that it has a replaceable pressure transmitter insert PTX 721-8518 which substantially reduces the cost of total transmitter replacement. With a 2 kHz response time, the device is suitable for measuring static and dynamic mud pressure.
Features and Benefits
- ±0.1% full scale (FS) accuracy
- Intrinsically safe certified – ATEX, IECEx, NEPSI and FM Approved (United States and Canada)
- CE marked
- Fast response time (2 kHz)
- Repairable
- Up to 2.5 times better accuracy than many competitive devices
- Exceptional reliability in high shock and vibration environments
- Available in both the 1502 and 2202 WECO® wing union configurations (both are NACE sour gas compatible)
