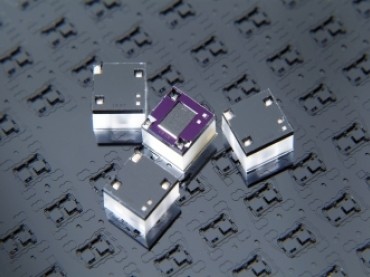

TERPS (Trench Etched Resonant Pressure Sensor) offers an order of magnitude greater performance over current technologies to provide the highest accuracy and stability sensor available.
It also significantly extends the pressure range capability conventionally associated with resonating pressure technology (RPT) sensors and enables robust packaging, suitable for harsh environments. The RPS/DPS 8000 resonant silicon pressure sensor is the first pressure sensor to incorporate GE’s TERPS technology platform.
Features and Benefits
- High precision, ±0.01% FS over compensated temperature range
- High stability, ±100 ppm FS/year
- Offering a wide range of pressure and electrical connections to allow flexible customization
- Wide temperature range, -40 °C to +85 °C (-40 °F to 185 °F)
- Designed with brand new TERPS technology
- Multiple output configurations, TTL and Diode, RS-232 and RS-48
8000 Pressure Sensor
- Welded 316L construction
- Pressure ranges, 2 bar (30 psi) up to 70 bar (1000 psi)
8100 Pressure Sensor
- Exposed silicon construction
- Barometric pressure to an accuracy of +/-0.1mbar (0.1hpa)
- Pressure range, 1 to 3.5 bar (15 to 50 psi)
- Low g sensitivity
8200 Pressure Sensor
- Media isolated construction in Welded Hastelloy C276 construction enabling use in harsh media such as sea water and sour gas
- Pressure ranges, 2 bar (30 psi) up to 70 bar (1000 psi)
- Extends the operating temperature range to -40 °C to + 125 °C (-40 °F to 257° F)
